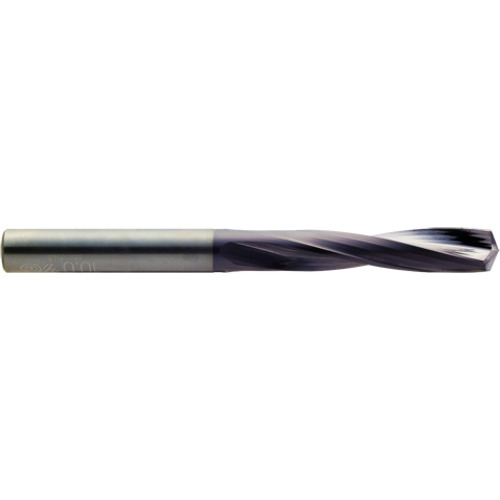

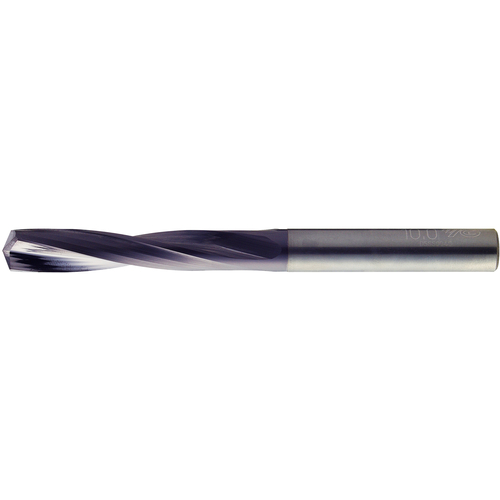

SC Drill; #29 Dia. × 3/16″ Shank Dia. × 2″ OAL × 13/16″ LCF ; 140 Degrees ; TiAlN ; Series DH501
SC Drill; #29 Dia. × 3/16″ Shank Dia. × 2″ OAL × 13/16″ LCF ; 140 Degrees ; TiAlN ; Series DH501
| Drill Bit Size / Cutting Diameter (DC) | #29 | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.1366″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.1366″ | Tool Type | High Hardened Steels (HRc50-HRc70) |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.47 mm | Measurement Type | Wire Gauge |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #29 | Series/List # | DH501 |
| Coating | TiAlN | Usable Length (LU) | 13/16″ |
| Applicable Material | | Steel | | Length Chip Flute (LCF) | 13/16″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Overall Length (OAL) | 2″ |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.0247″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Flute Helix Angle (FHA) | 15 Degrees |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.625
Package Width
0.625
Package Height
0.625
Package Weight
0.029
