5/16 CBD 5XD DREAM DRL

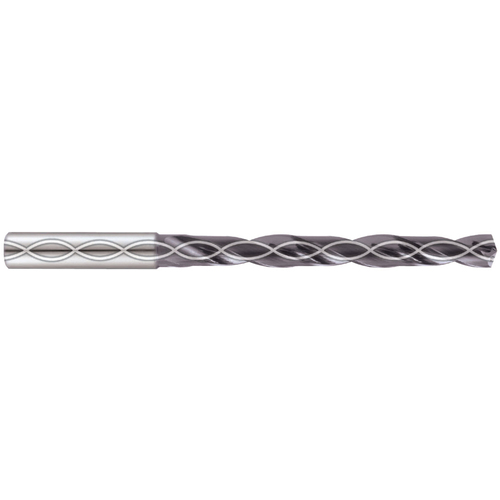

SC Drill; 5/16″ Dia. × 5/16″ Shank Dia. × 4-41/64″ OAL × 2-33/64″ LCF ; 140 Degrees ; 5xD ; TiAIN ; Series DH464
| Drill Bit Size / Cutting Diameter (DC) | 5/16″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/16″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.3125″ | Tool Type | Dream Drills INOX with coolant holes |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.938 mm | Measurement Type | Inch |
| Length Group | 5xD | Series/List # | DH464 |
| Coating | TiAIN | Usable Length (LU) | 2-33/64″ |
| Applicable Material | | Steel | Stainless Steel | | Length Chip Flute (LCF) | 2-33/64″ |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Overall Length (OAL) | 4-41/64″ |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.0569″ | Shank Diameter Tolerance (TCDMM) | -0.0006 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5
Package Width
0.75
Package Height
0.75
Package Weight
0.15
