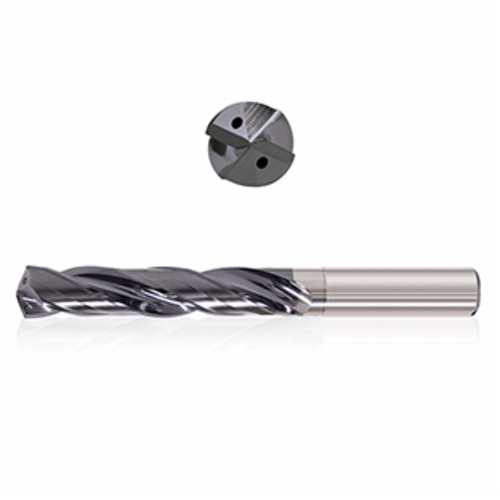

0.2677 mm Dia. × 8 mm Shank × 230 mm Flute Length × 280 mm OAL, 30xD, 135°, Varianta Supral, 2 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide Drill
SC Drill; 0.2677 mm Dia. × 8 mm Shank Dia. × 280 mm OAL × 230 mm LCF ; 135 Degrees ; 30xD ; Helical Flute ; Varianta Supral ; Series SXC
| Drill Bit Size / Cutting Diameter (DC) | 6.8 mm | Shank Standard | h6 |
| Decimal Equivalent | 0.0105″ | Shape | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.8 mm | Cutting Edge Material | Carbide |
| Length Group | 30xD | Tool Type | Solid Carbide Drill |
| Coating | TiAICN | Flute Type | Helical |
| Applicable Material | | Stainless Steel | Steel | Super-Alloys / Titanium | | Grade | H5009 Varianta Supral |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Usable Length (LU) | 219.8 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 230 mm |
| Point Angle (SIG) | 135 Degrees | Overall Length (OAL) | 280 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Feature | DOUBLE-MARGIN DRILL |
| Shank Length (LS) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
Product Features
| Family Description | 135° Point, Double Margin, High Performance, Coolant ThroughLong spiral-fluted, right-hand cut for Steels, Stainless, and Titanium | Country of Origin | Usa |
| Remarks | •Ideal for Stainless Steels, Heat Resistant Alloys & Cast Material applications | ItemRemark | click here for cutting data |
