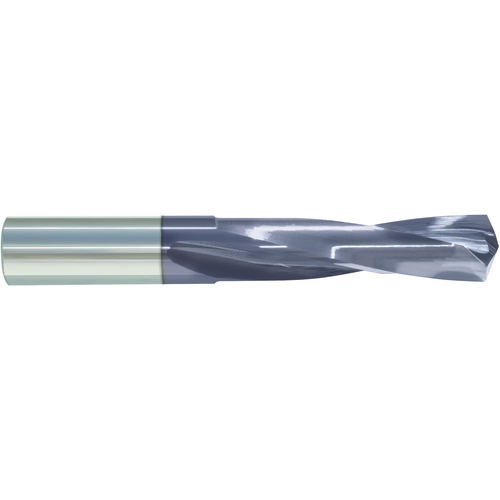

5375T 4.50MM SM DRL SC
SC Drill; 4.5 mm Dia. × 4.5 mm Shank Dia. × 56 mm OAL × 29 mm LCF ; 135 Degrees ; Screw Machine ; TiAlN ; Series 5375T
| Drill Bit Size / Cutting Diameter (DC) | 4.5 mm | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.1772″ | Point Shape | Split |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.5 mm | Measurement Type | Metric |
| Length Group | Screw Machine | Series/List # | 5375T |
| Coating | TiAlN | Usable Length (LU) | 29 mm |
| Connection Diameter Machine Side (DCONMS) | 4.5 mm | Length Chip Flute (LCF) | 29 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 56 mm |
| Point Angle (SIG) | 135 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 15 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.035
