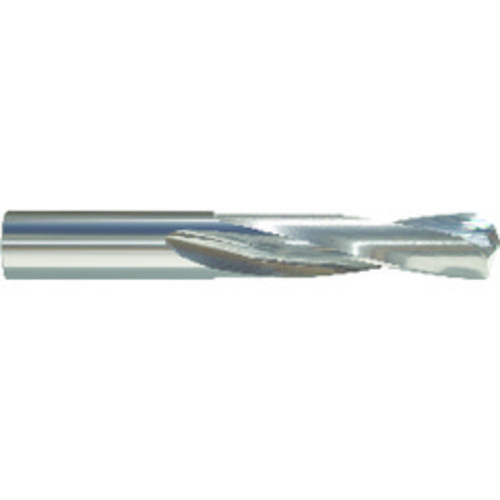

5375 #16 SM DRL SC BRT
SC Drill; #16 Dia. × 0.177″ Shank Dia. × 2-3/16″ OAL × 1-1/8″ LCF ; 135 Degrees ; Screw Machine ; Uncoated ; Series 5375
| Drill Bit Size / Cutting Diameter (DC) | #16 | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.177″ | Point Shape | Split |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #16 | Measurement Type | Wire Gauge |
| Length Group | Screw Machine | Series/List # | 5375 |
| Coating | Uncoated | Usable Length (LU) | 1-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.177″ | Length Chip Flute (LCF) | 1-1/8″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 2-3/16″ |
| Point Angle (SIG) | 135 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 15 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Remarks | Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.37500
Package Height
.37500
Package Weight
0.04
