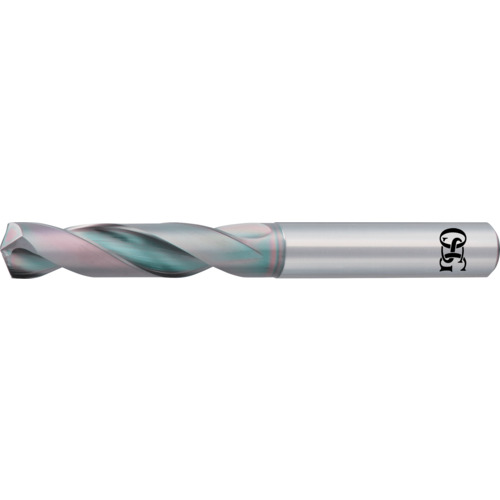

Q Dia. x 10 mm Shank × 47 mm Flute Length × 89 mm OAL, 2xD, EgiAs, 2 Flute, Solid Carbide Drill
SC Drill; Q Dia. x 10 mm Shank Dia. × 89 mm OAL × 47 mm LCF ; 140 Degrees ; 2xD ; EgiAs ; Series 6300
| Drill Bit Size / Cutting Diameter (DC) | Q | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | Q | Tool Type | Stub Drill |
| Length Group | 2xD | Measurement Type | Letter |
| Coating | EgiAs | Series/List # | 6300 |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 47 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Length Chip Flute (LCF) | 47 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 89 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 47 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.70000
Package Width
.65000
Package Height
.55000
Package Weight
0.155
