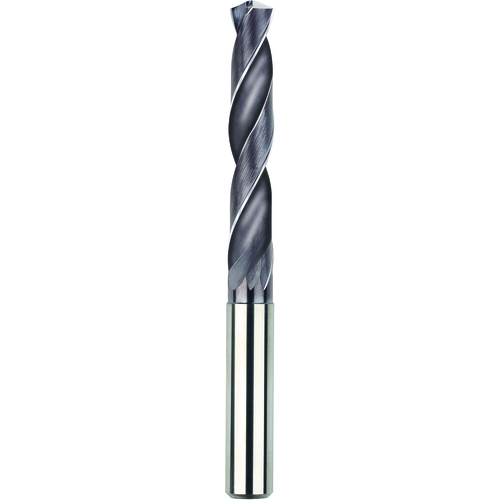

3/8″ Dia. × 3/8″ Shank × 3-5/32″ Flute Length × 5-23/64″ OAL, 5xD, 140°, TiAlN, 2 Flute, External Coolant, Round Solid Carbide Drill Series/List #5603
Solid Carbide Drill; 3/8″ Dia. × 3/8″ Shank Dia. × 5-23/64″ OAL × 3-5/32″ LCF ; 140 Degrees ; 5xD ; 2 FL ; TiAlN ; Series 5603
| Drill Bit Size / Cutting Diameter (DC) | 3/8″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/8″ | Point Shape | Self Centering |
| Decimal Equivalent | 0.375″ | Measurement Type | Inch |
| Length Group | 5xD | Series/List # | 5603 |
| Coating | TiAlN | Usable Length (LU) | 3-5/32″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Length Chip Flute (LCF) | 3-5/32″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 5-23/64″ |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.37500
Package Height
.37500
Package Weight
0.25
