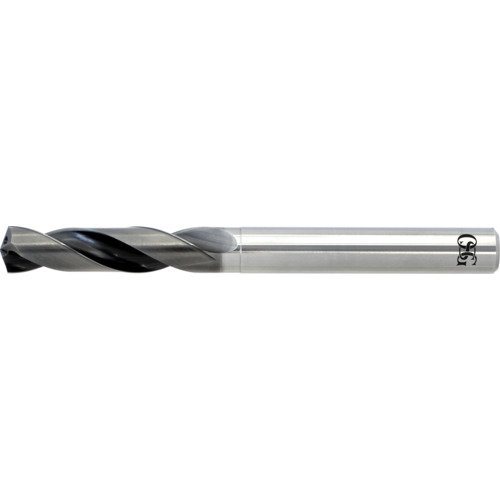

1/8″ Dia. × 1/8″ Shank × 20 mm Flute Length × 74 mm OAL, 3xD, WXL, 2 Flute, Solid Carbide Drill
SC Drill; 1/8″ Dia. × 1/8″ Shank Dia. × 74 mm OAL × 20 mm LCF ; 140 Degrees ; 3xD ; AlTiCrN ; Series 5200
| Drill Bit Size / Cutting Diameter (DC) | 1/8″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/8″ | Tool Type | Stub Drill |
| Decimal Equivalent | 0.125″ | Measurement Type | Inch |
| Length Group | 3xD | Series/List # | 5200 |
| Coating | AlTiCrN | Usable Length (LU) | 20 mm |
| Applicable Material | | Steel | Hard Materials | Aluminum / Non-Ferrous Materials | | Length Chip Flute (LCF) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Overall Length (OAL) | 74 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 20 mm |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.05000
Package Width
.45000
Package Height
.35000
Package Weight
0.025
