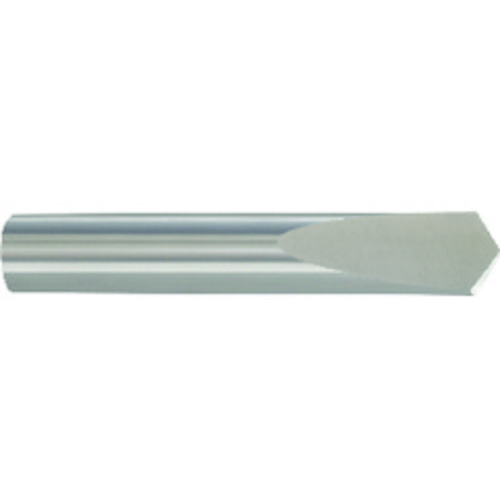

5377 5/32″ HD SPADE DRL
SC Drill; 5/32″ Dia. × 5/32″ Shank Dia. × 2″ OAL × 9/16″ LCF ; 118 Degrees ; Spade Drill ; Uncoated ; Series 5377
| Drill Bit Size / Cutting Diameter (DC) | 5/32″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/32″ | Point Shape | Heavy Duty Web |
| Decimal Equivalent | 0.1563″ | Measurement Type | Inch |
| Length Group | Spade Drill | Series/List # | 5377 |
| Coating | Uncoated | Usable Length (LU) | 9/16″ |
| Connection Diameter Machine Side (DCONMS) | 5/32″ | Length Chip Flute (LCF) | 9/16″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 2″ |
| Point Angle (SIG) | 118 Degrees | Flute Count (NOF) | 1 |
| Flute Helix Angle (FHA) | 0 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Remarks | Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.37500
Package Height
.37500
Package Weight
0.03
