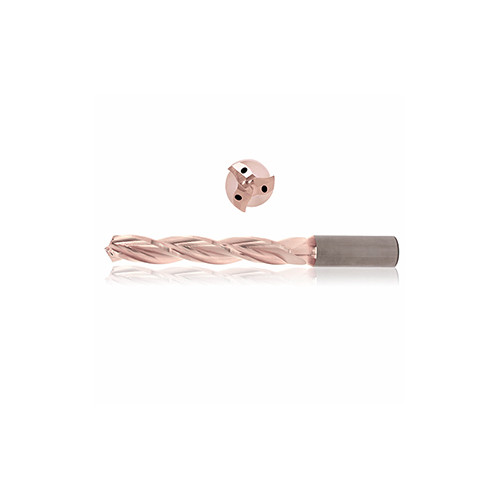

0.4528 mm Dia. × 12 mm Shank × 55 mm Flute Length × 102 mm OAL, 3xD, 130°, ZircoPlus, 3 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide Drill
SC Drill; 0.4528 mm Dia. × 12 mm Shank Dia. × 102 mm OAL × 55 mm LCF ; 130 Degrees ; 3xD ; Helical Flute ; ZircoPlus ; Series CXC
| Drill Bit Size / Cutting Diameter (DC) | 11.5 mm | Shank Standard | h6 |
| Decimal Equivalent | 0.0178″ | Shape | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11.5 mm | Cutting Edge Material | Carbide |
| Length Group | 3xD | Tool Type | Solid Carbide Drill |
| Coating | ZrCN | Flute Type | Helical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | Cast Iron | | Grade | H5010 ZircoPlus |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Usable Length (LU) | 37.7 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 55 mm |
| Point Angle (SIG) | 130 Degrees | Overall Length (OAL) | 102 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 3 |
| Number of Teeth | 3 | Feature | SINGLE-MARGIN DRILL |
| Shank Length (LS) | 47 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
Product Features
| Family Description | 130° Self Centering Point, Single Margin, Coolant Through High Performance, Aluminum and Non Ferrous Material | ItemRemark | click here for cutting data |
| Country of Origin | Usa |
