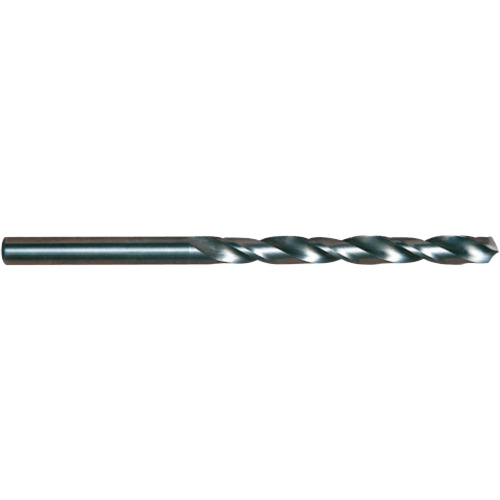

SC Drill; W Dia. x 0.386″ Shank Dia. × 4-1/2″ OAL × 2-7/8″ LCF ; 118 Degrees ; Jobber ; Bright ; Series D5413
SC Drill; W Dia. x 0.386″ Shank Dia. × 4-1/2″ OAL × 2-7/8″ LCF ; 118 Degrees ; Jobber ; Uncoated ; Series D5413
| Drill Bit Size / Cutting Diameter (DC) | W | Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.386″ | Shank Type | Round |
| Decimal Equivalent | 0.386″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.804 mm | Tool Type | Jobber Length Twist Drill |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | W | Measurement Type | Letter |
| Length Group | Jobber | Series/List # | D5413 |
| Coating | Uncoated | Usable Length (LU) | 2-7/8″ |
| Applicable Material | | Steel | | Length Chip Flute (LCF) | 2-7/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.386″ | Overall Length (OAL) | 4-1/2″ |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 118 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.116″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5
Package Width
0.625
Package Height
0.625
Package Weight
0.195
