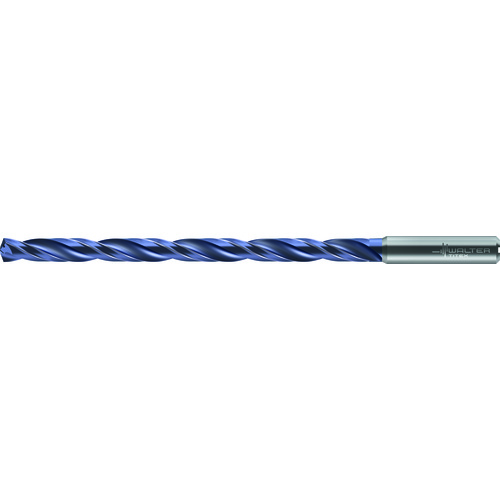

6.9 mm Dia. × 8 mm Shank × 110 mm Flute Length × 148 mm OAL, 12xD, 140 Degrees, Axial Inclined Exit, DIN 6535 HA, Cylindrical Solid Carbide Drill DC150 WJ30TA
SC Drill; 6.9 mm Dia. × 8 mm Shank Dia. × 148 mm OAL × 110 mm LCF ; 140 Degrees ; 12xD ; TiAlN ; Series DC150
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 6.9 mm | Cutting Edge Material | Carbide |
| Length Group | 12xD | Tool Type | High Performance |
| Coating | TiAlN | Grade | WJ30TA |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Series/List # | DC150 |
| Coolant Supply Property (CSP) | Coolant Thru | Usable Length (LU) | 98 mm |
| Point Angle (SIG) | 140 Degrees | Length Chip Flute (LCF) | 110 mm |
| Functional Length (LF) | 110 mm | Overall Length (OAL) | 148 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 2 |
| Shank Length (LS) | 36 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Shank Standard | DIN 6535 HA |
Product Features
| Country of Origin | China |
