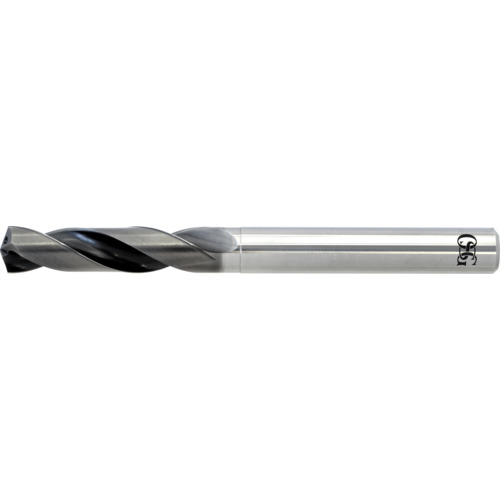

7.4 mm Dia. × 8 mm Shank × 37 mm Flute Length × 94 mm OAL, 3xD, WXL, 2 Flute, Solid Carbide Drill
SC Drill; 7.4 mm Dia. × 8 mm Shank Dia. × 94 mm OAL × 37 mm LCF ; 140 Degrees ; 3xD ; AlTiCrN ; Series 5200
| Drill Bit Size / Cutting Diameter (DC) | 7.4 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.4 mm | Tool Type | Stub Drill |
| Length Group | 3xD | Measurement Type | Metric |
| Coating | AlTiCrN | Series/List # | 5200 |
| Applicable Material | | Steel | Hard Materials | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 37 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Length Chip Flute (LCF) | 37 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 94 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 37 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.85000
Package Width
.50000
Package Height
.45000
Package Weight
0.115
