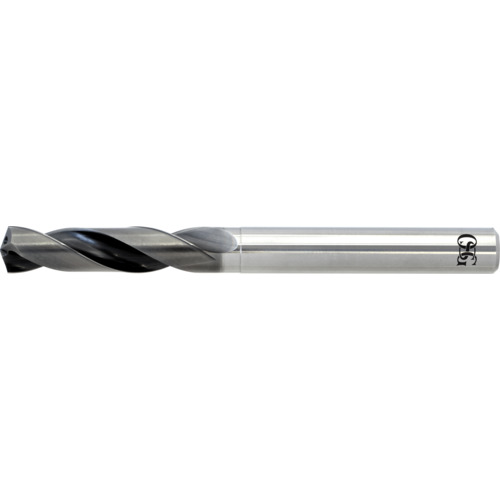

12.5 mm Dia. × 13 mm Shank × 63 mm Flute Length × 128 mm OAL, 3xD, WXL, 2 Flute, Solid Carbide Drill
SC Drill; 12.5 mm Dia. × 13 mm Shank Dia. × 128 mm OAL × 63 mm LCF ; 140 Degrees ; 3xD ; AlTiCrN ; Series 5200
| Drill Bit Size / Cutting Diameter (DC) | 12.5 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 12.5 mm | Tool Type | Stub Drill |
| Length Group | 3xD | Measurement Type | Metric |
| Coating | AlTiCrN | Series/List # | 5200 |
| Applicable Material | | Steel | Hard Materials | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 63 mm |
| Connection Diameter Machine Side (DCONMS) | 13 mm | Length Chip Flute (LCF) | 63 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 128 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 63 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
5.45000
Package Width
.85000
Package Height
.75000
Package Weight
0.385
