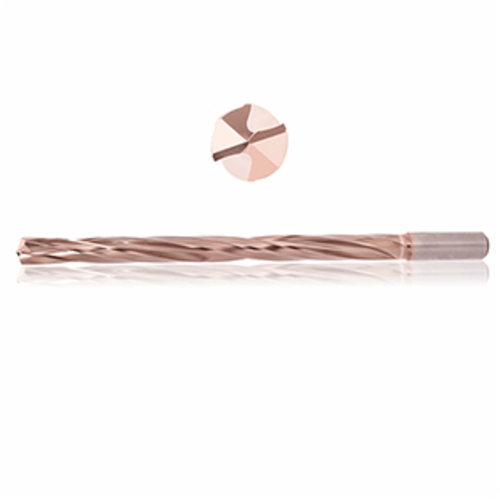

.3346 × 3/8 × 2-1/2 × 5
SC Drill; 0.3346″ Dia. × 3/8″ Shank Dia. × 5″ OAL × 2-1/2″ LCF ; 135 Degrees ; 5xD ; Helical Flute ; ZrCN ; Series AX
| Drill Bit Size / Cutting Diameter (DC) | 0.3346″ | Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.3346″ | Shape | Jobber Drill |
| Decimal Equivalent | 0.3346″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.5 mm | Tool Type | Solid Carbide Drills |
| Length Group | 5xD | Flute Type | Helical |
| Coating | ZrCN | Grade | A5010 ZircoPlus |
| Applicable Material | | Aluminum | Non Ferrous Metals | | Measurement Type | Inch |
| Application | | Drilling | | Series/List # | AX |

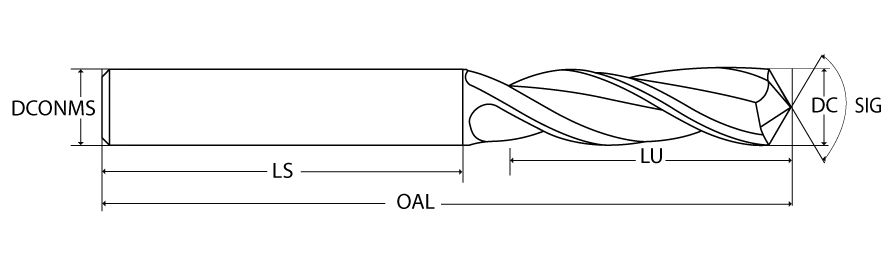

| Connection Diameter Machine Side (DCONMS) | 3/8″ | Usable Length (LU) | 1.9981″ |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 2-1/2″ |
| Point Angle (SIG) | 135 Degrees | Overall Length (OAL) | 5″ |
| Flute Helix Angle (FHA) | 15 Degrees | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Feature | TRIPLE-MARGIN DRILL |
| Shank Length (LS) | 2-1/2″ | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
Product Features
| Family Description | 135° Point, Triple Margin, Zirco Coating For Aluminum and Non Ferrous Material | ItemRemark | click here for cutting data |
| Country of Origin | USA |
Shipping Info
Package Weight
0.5
