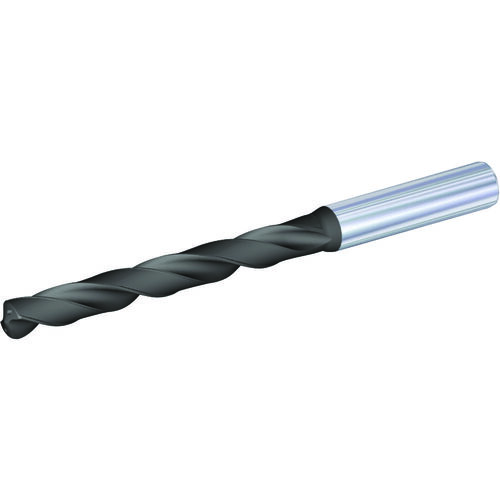

3 mm Dia. × 6 mm Shank × 40 mm Flute Length × 78 mm OAL, 140°, TiAlN, Coolant Thru, Round Solid Carbide Drill
SC Drill; 3 mm Dia. × 6 mm Shank Dia. × 78 mm OAL × 40 mm LCF ; 140 Degrees ; 10xD ; Spiral Flute ; TiAlN
Additional Tariff Surcharge of 8.5 %
| Drill Bit Size / Cutting Diameter (DC) | 3 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3 mm | Tool Type | Center Cut |
| Length Group | 10xD | Flute Type | Spiral |
| Coating | TiAlN | Grade | WP20PD |
| Applicable Material | | Steel | Cast Iron | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 33 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 40 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 78 mm |
| Flute Helix Angle (FHA) | 27.1 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Shape | Center Cut |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.0441
