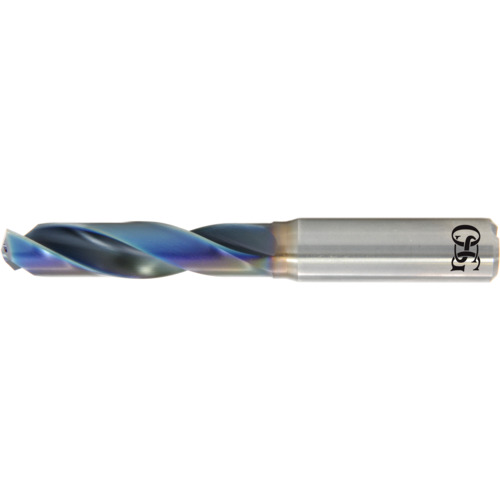

5/8″ Dia. × 16 mm Shank × 65 mm Flute Length × 115 mm OAL, 3xD, 140°, TiAlN, 3 Flute, Coolant Thru, Round Solid Carbide Drill
SC Drill; 5/8″ Dia. × 16 mm Shank Dia. × 115 mm OAL × 65 mm LCF ; 140 Degrees ; 3xD ; EgiAs ; Series HP253
| Drill Bit Size / Cutting Diameter (DC) | 5/8″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/8″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.625″ | Tool Type | Solid Carbide Drills |
| Length Group | 3xD | Measurement Type | Inch |
| Coating | EgiAs | Series/List # | HP253 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 65 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Length Chip Flute (LCF) | 65 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 115 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 3 |
| Functional Length (LF) | 65 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
Product Features
| Remarks | •High Performance Carbide Drill •Coolant Thru •OSG's WD1 Coating •3xD Length •Recommended for Cast Iron, Carbon Steels, Alloy Steels, Die Steels and Hardened Steels up to 35 HrC | Country of Origin | India |
Shipping Info
Package Length
4.60000
Package Width
.95000
Package Height
.85000
Package Weight
0.525
