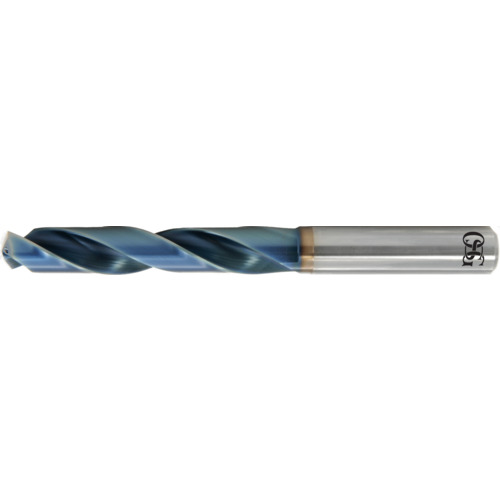

1/8 HP CARB OH DRILL 5D
SC Drill; 1/8″ Dia. × 6 mm Shank Dia. × 66 mm OAL × 28 mm LCF ; 140 Degrees ; 5xD ; EgiAs ; Series HP255
| Drill Bit Size / Cutting Diameter (DC) | 1/8″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/8″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.125″ | Tool Type | Solid Carbide Drills |
| Length Group | 5xD | Measurement Type | Inch |
| Coating | EgiAs | Series/List # | HP255 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 28 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 28 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 66 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 3 |
| Functional Length (LF) | 28 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Remarks | •High Performance Carbide Drill •Coolant Thru •OSG's WD1 Coating •5xD Length •Recommended for Cast Iron, Carbon Steels, Alloy Steels, Die Steels and Hardened Steels up to 35 HrC | Country of Origin | India |
Shipping Info
Package Length
2.55000
Package Width
.50000
Package Height
.45000
Package Weight
0.025
