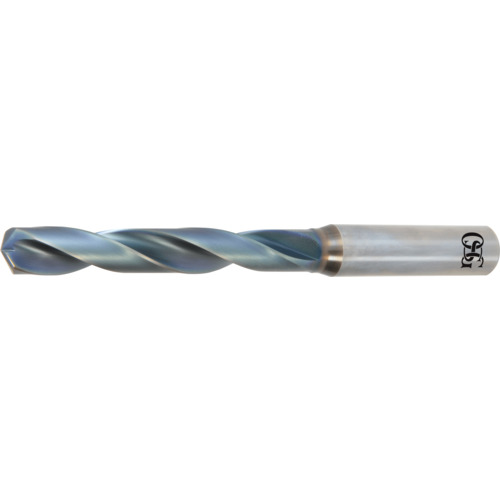

1/2 HP CARB DRILL 5D
SC Drill; 1/2″ Dia. × 14 mm Shank Dia. × 124 mm OAL × 77 mm LCF ; 140 Degrees ; 5xD ; EgiAs ; Series HP245
| Drill Bit Size / Cutting Diameter (DC) | 1/2″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/2″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5″ | Tool Type | Solid Carbide Drills |
| Length Group | 5xD | Measurement Type | Inch |
| Coating | EgiAs | Series/List # | HP245 |
| Applicable Material | | Hard Materials | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 77 mm |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Length Chip Flute (LCF) | 77 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 124 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 77 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Remarks | •High Performance Carbide Drill •OSG's WD1 Coating •5xD Length •Recommended for Cast Iron, Carbon Steels, Alloy Steels, Die Steels and Hardened Steels up to 35 HrC | Country of Origin | India |
Shipping Info
Package Length
4.90000
Package Width
.75000
Package Height
.70000
Package Weight
0.445
