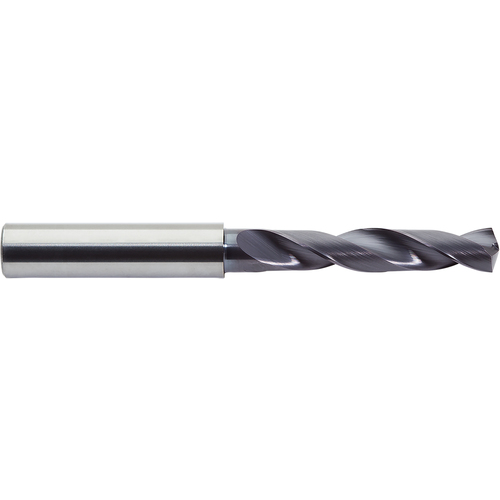

3/4″ Dia. × 3/4″ Shank × 2-3/4″ Flute Length × 5-1/4″ OAL, 3xD, 142°, AlTiN, 2 Flute, External Coolant, Round Solid Carbide Drill
SC Drill; 3/4″ Dia. × 3/4″ Shank Dia. × 5-1/4″ OAL × 2-3/4″ LCF ; 142 Degrees ; 3xD ; TiAlN ; Series 2XDSS
| Drill Bit Size / Cutting Diameter (DC) | 3/4″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/4″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.75″ | Tool Type | Solid Carbide Drills |
| Length Group | 3xD | Point Shape | Point |
| Coating | TiAlN | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Series/List # | 2XDSS |
| Coolant Supply Property (CSP) | External | Usable Length (LU) | 2-3/4″ |
| Point Angle (SIG) | 142 Degrees | Length Chip Flute (LCF) | 2-3/4″ |
| Flute Helix Angle (FHA) | 30 Degrees | Overall Length (OAL) | 5-1/4″ |
| Shank Type | Round | Flute Count (NOF) | 2 |
Product Features
| Family Description | Alternate Manufacture # 02334 | Country of Origin | USA |
| Remarks | •Twister® XD ALtima® Coated High Performance Solid Carbide Stub Drills •3X Drilling lengths shown. Recommended in non-coolant through applications. Designed for drilling a broad cross section of materials at increased feed rates. • Made from micrograin 10% cobalt grade (k20–40) - ALtima® Coated • 30° Helix to promote rapid chip evacuation • 142° Point Angle • Also available in coolant fed styles and with ALtima® coating |
Shipping Info
Package Length
5.25000
Package Width
.78700
Package Height
.78700
Package Weight
.919
