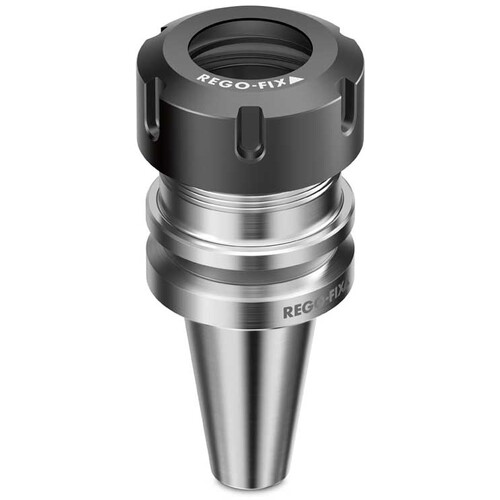

BT30 x ER16 × 100mm H Collet Chuck
Collet Chuck ; #30 Shank Size ; #16 Connection Size ; 1.11″ Body Dia.
Additional Tariff Surcharge of 5 %
| Shank Size (SS) | #30 | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Size (CSI) | #16 | Type | ER |
| Body Diameter (BD) | 1.11″ | Measurement Type | Metric |
| Protruding Length (LPR) | 100 mm | Nut Diameter | 28 mm |
| Tool Type | Collet Chuck | Length Group | Standard |
| Style | Standard |
Product Features
| Remarks | •Available in various gauge lengths •Designed for use on machining centers with automatic tool change •REGO-FIX Q+ System CAT/ER collet holders are balanced by design to G 2.5 @ balanced for high speeds in excess of 22,000 rpm and higher •BT30 | Country of Origin | SWITZERLAND |
Shipping Info
Package Weight
1.486
