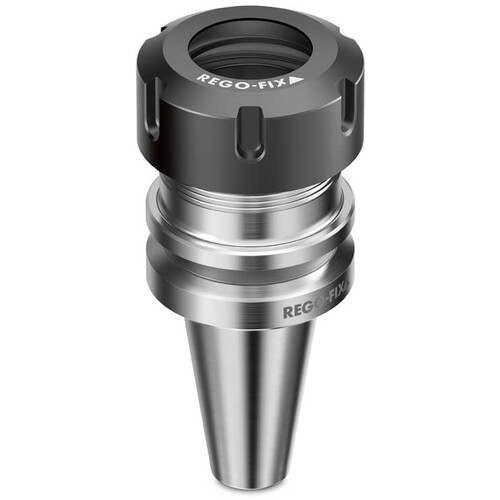

BT30 x ER16M × 100mm H Collet Chuck

| Shank Size (SS) | #30 | Flange Diameter (DF) | 1.11″ |
| Connection Size (CSI) | ER16 | Shank Type | BT |
| Body Length Maximum (LBX) | 3.93″ | Type | Standard Length |
Product Features
| Remarks | •Case hardened to 58–62 HRc
•Pre-balanced to G2.5 @ 22,000 RPM's
•T.I.R. from the collet cavity to the holder taper 0.0001″ or better
•Lot Numbers for lot traceability
•Through the spindle coolant or through the flange version available
•BT & CAT+ have Hi-Q clamping nut included
•AT3 or beter tapers guaranteed
•Superior surface finish at 0.25Ra for better fit and accuracy
•Swiss made to ISO 90001
•Big Plus System - Licensed by Big Daishowa | Country of Origin | Switzerland |
Shipping Info
Package Weight
.250
