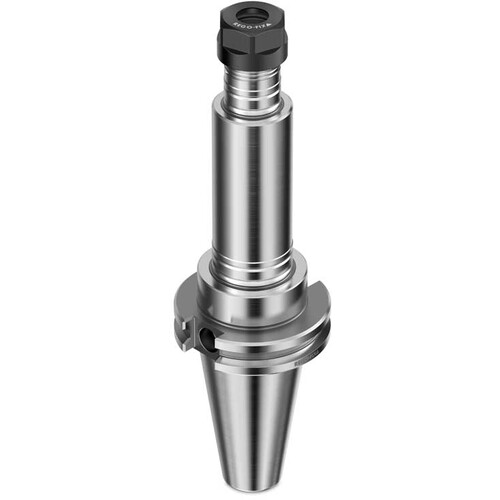

CAT40 x ER16 × 14″ Collet Chuck
Collet Chuck ; #40 Shank Size ; #16 Connection Size ; 1.11″ Body Dia. ; 8″ Body Length ; 1.65″ Shank Dia.
Additional Tariff Surcharge of 5 %
| Shank Size (SS) | #40 | Style | Standard |
| Connection Size (CSI) | #16 | Coolant Supply Property (CSP) | Coolant Thru |
| Body Diameter (BD) | 1.11″ | Type | ER |
| Protruding Length (LPR) | 15″ | Measurement Type | Inch |
| Body Length (LB) | 8″ | Nut Diameter | 1.1″ |
| Connection Diameter Machine Side (DCONMS) | 1.65″ | Length Group | XL |
| Tool Type | Collet Chuck |
Product Features
| Remarks | •For lengths up to 14? •Special design dampens vibrations better than solid body designs •Case hardened to 58–62 HRc for long life and wear resistances •Pre-balanced to 5,000 rpm?s. •TIR from the collet cavity to the holder taper 0.0004? or better •Lot Numbers for lot traceability •Precision threads for better clamping force and accuracy •Through the spindle coolant or through the flange version available •REGO-FIX Hi-Q nut provided for added clamping force. | Country of Origin | Switzerland |
Shipping Info
Package Weight
7.450
