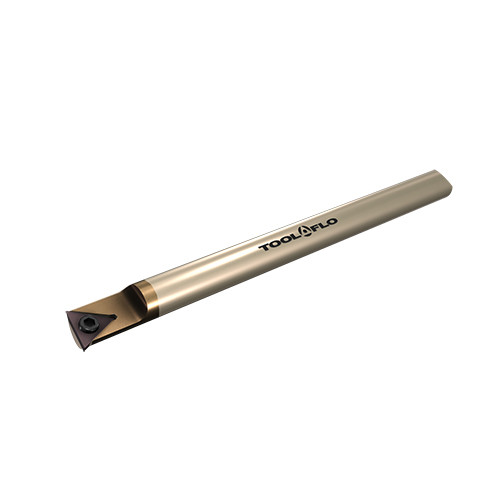

QCBI-500-8-5R
Int. Turning Tool ; 8″ OAL ; 1/2″ Shank Dia. ; 0.563″ Min Bore Dia. ; Carbide

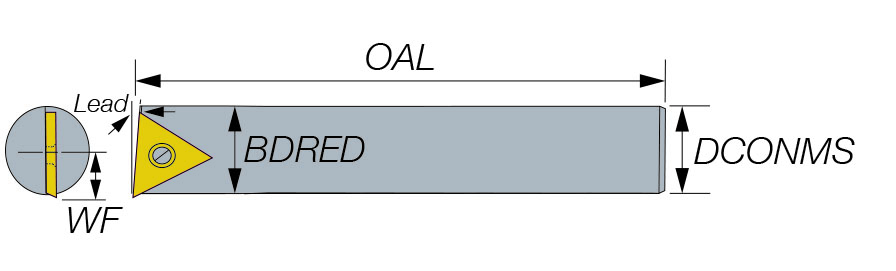

| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | | Int Boring Bantam | |
| Overall Length (OAL) | 8″ | Frontal Edge Angle | 5 Degrees |
| Head Length (LH) | 0.745″ | Body Material | Carbide |
| Functional Width (WF) | 0.296″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.563″ | Insert Style | TPCB | TPCG |
| Cutting Direction (HAND) | Right Hand | Neck Diameter (DN) | 0.51″ |
| Shank Type | Round Shank w/3 Flats |
Product Features
| Family Description | Internal 5° Lead Boring Bar with Carbide Shank for TPCB and TPCG MicroCut Inserts | Country of Origin | USA |
