APT Tri-Lead Indexable Boring Bars - TL109 Right Hand 1″ Shank
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | TPG-32 | Tool Type | Tri-Lead Indexable Boring Bars |
| Minimum Bore Diameter (DMIN) | 1-1/4″ |
Product Features

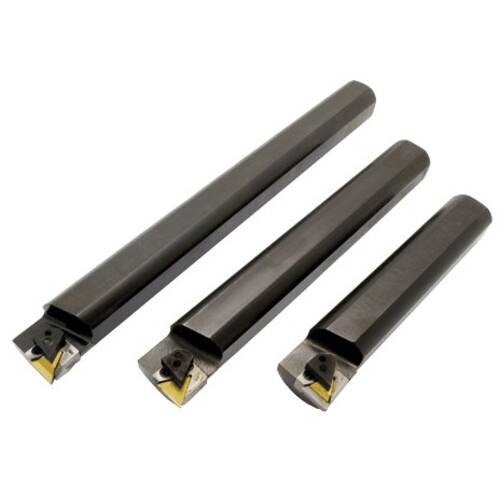

| Remarks | •Tri-Lead Boring Bar 3-PieceSet •These revolutionary features are an exclusive designof the Tri-Lead boring tool •Cartridges are hardened to 60-64 Rockwell and ground to ±.0005 to assure proper seating of insert. All boring bars are made of tempered alloy steel for proper boring rigidity.Cutting inserts can be indexed or replaced without loss of hole size or depth when cutting edge is dull. Chip breaker breaks chips into small rolls, thus eliminating winding of long stringy chips around tool and clogging work. Clearance behind cutting tool edge eliminates chip interference between boring tool and side of tool. Flat sides on bar for square lathe turrets or in round holes provide 3-point suspension for utmost rigidity. Clamp screw under bar eliminates chips from clogging screw head. •TRI-LEADS are furnished in 4 different shank sizes: 3 for jig bores or boring mills 1 extra long for lathe work. •All tools are made of tempered alloy steelfor proper boring rigidity. | Country of Origin | USA |
Shipping Info
Package Weight
4.1250
