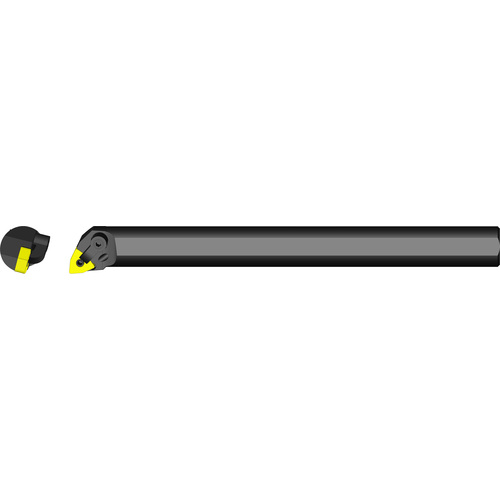

ULTRA-DEX 957 A20S MWLNR4 DIA-1-1/4″ Steel Boring Bar Negative Trigon KAPR 95DEG 4:1 Ratio Right Hand Coolant Thru
Int. Turning Tool ; 10″ OAL ; 1-1/4″ Shank Dia. ; 10″ LF ; 1.470″ Min Bore Dia.
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Minimum Bore Diameter (DMIN) | 1.470″ |
| Functional Length (LF) | 10″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 10″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Width (WF) | .765″ | Style | MWLNR |
| Master Insert Identification (MIID) | WNMG 432 |
Product Features
| Remarks | •-5° Lead •Coolant-thru •Takes negative trigon inserts •4:1 Ratio | Country of Origin | USA |
Shipping Info
Package Weight
3.21
