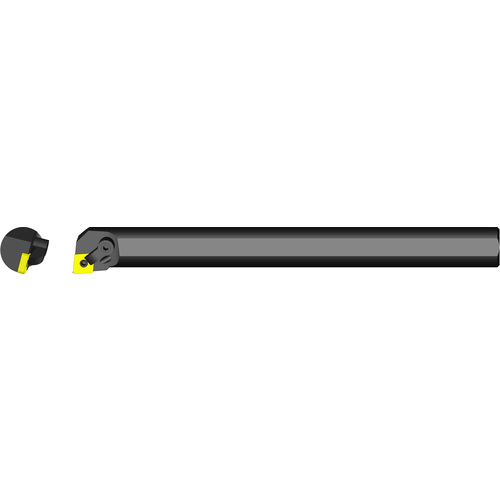

‎ULTRA-DEX 957 A20U MCLNR4 DIA-1-1/4″ Steel Boring Bar Negative 80DEG Diamond KAPR 95DEG 4:1 Ratio Right Hand Coolant Thru

‎Int. Turning Tool ; 14″ OAL ; 1-1/4″ Shank Dia. ; 14″ LF ; 1.470″ Min Bore Dia.

Item # 0509751

Brand: ARCH Cutting Tools

MFG #: 957-000-179

Alternate MFG #: A20UMCLNR4

Legacy Part #: FG550981

UPC #: CCMT 32.51-ZX3 UD21$M

Trade Name: ULTRA-DEX

Connection Diameter Machine Side (DCONMS)

‎1-1/4″

Minimum Bore Diameter (DMIN)

1.470″

Functional Length (LF)

14″

Cutting Direction (HAND)

Right Hand

Overall Length (OAL)

14″

Coolant Supply Property (CSP)

Coolant Thru

Functional Width (WF)

.765″

Style

MCLNR

Master Insert Identification (MIID)

CNMG 432

Product Features

Remarks

•-5° Lead •Coolant-thru •Takes negative 80° diamond inserts •4:1 Ratio

Country of Origin

USA

Package Length

14.20000

Package Width

2.10000

Package Height

1.90000

Package Weight

4.6
