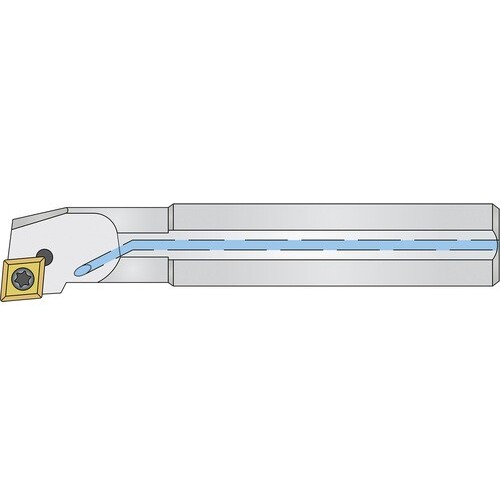

20-0821 1/4 Shank Dia × 3 OAL Coolant-Thru Boring & Facing SCLCR - Uncoated
Int. Turning Tool ; 3.1″ OAL ; 1/4″ Shank Dia. ; 3″ LF ; 0.33″ Min Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Shank Type | Square |
| Functional Length (LF) | 3″ | Frontal Edge Angle | 5 Degrees |
| Overall Length (OAL) | 3.1″ | Tool Type | SCLC|Boring & Facing |
| Functional Width (WF) | 0.33″ | Body Material | Steel |
| Master Insert Identification (MIID) | 50-1100 | Style | A04F SCLCR 2 |
| Minimum Bore Diameter (DMIN) | 0.33″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Axial Groove Outside Diameter Minimum (DAXN) | 0.012″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.095
