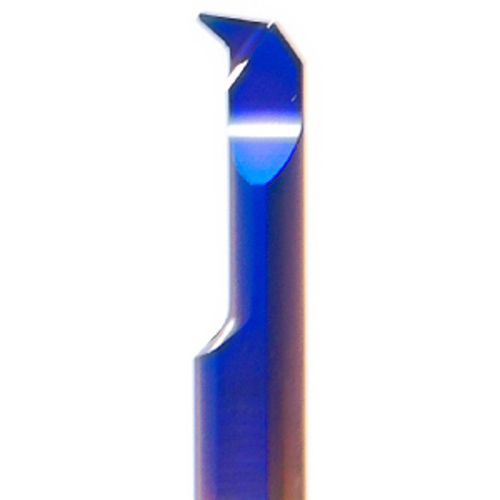

MQR 4 R0.2 L10 BMK
Boring Bar; 4.06 mm Min Bore Dia. × 0.8 mm Max Bore Depth × 9.91 mm LU × 50.8 mm OAL ; 0.2 mm Corner Radius ; Carbide ; PVD 3x Layer Sub-Micron Coated BMK
| Minimum Bore Diameter (DMIN) | 4.06 mm | Cutting Diameter (DC) | 1.78 mm |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External | Tool Type | PROFILING & BORING |
| Grade | BMK | Frontal Edge Angle | 8 Degrees |
| Applicable Material | | General Purpose | | Measurement Type | Metric |
| Corner Radius (RE) | 0.2 mm | Size | H4 |
| Cutting Depth Maximum (CDX) | 0.8 mm | Overall Length (OAL) | 50.8 mm |
| Usable Length (LU) | 9.91 mm |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.025
