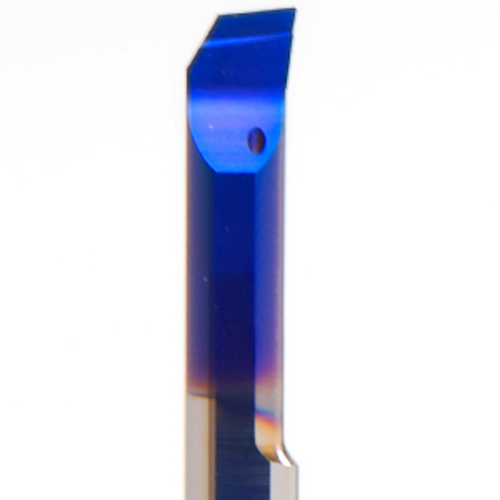

MTL 6 R0.2 L22 BMK
Boring Bar; 6 mm Shank Dia. × 6.1 mm Min Bore Dia. × 22.1 mm LU × 50.8 mm OAL ; 0.2 mm Corner Radius ; Carbide
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 22.1 mm |
| Minimum Bore Diameter (DMIN) | 6.1 mm | Cutting Diameter (DC) | 2.79 mm |
| Cutting Direction (HAND) | Left Hand | Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | BORING |
| Grade | BMK | Measurement Type | Metric |
| Applicable Material | | General Purpose | | Size | H6 |
| Corner Radius (RE) | 0.2 mm | Overall Length (OAL) | 50.8 mm |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
.0440
