CXS06T098206240R 1025

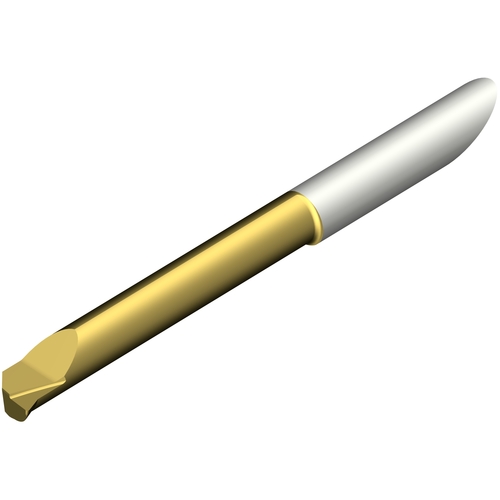

Boring Bar; 6 mm Shank Dia. × 0.244″ Min Bore Dia. × 0.0197″ Max Bore Depth × 67.45 mm LF ; 0.2 mm Corner Radius ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Connection Diameter Machine Side (DCONMS) | 6 mm | Grade | 1025 |
| Minimum Bore Diameter (DMIN) | 0.244″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Functional Length (LF) | 67.45 mm | Front End Width (a) | 3 mm |
| Head Length (LH) | 0.5 mm | Corner Radius (RE) | 0.2 mm |
| Cutting Direction (HAND) | Right Hand | Cutting Depth Maximum (CDX) | 0.0197″ |
| Coating | TiAlN | Cutting Edge Material | Carbide |
Product Features
| Country of Origin | United Kingdom |
Shipping Info
Package Weight
0.063
