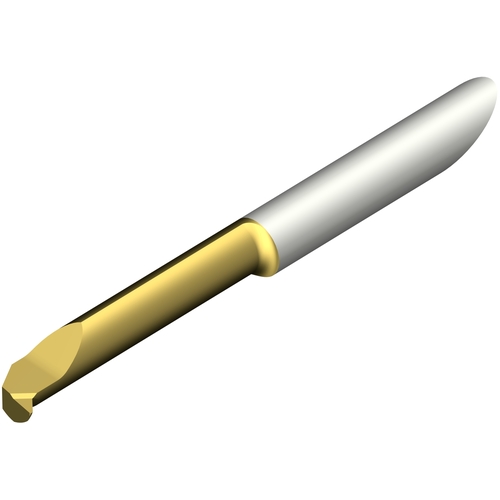

CXS05TE98155225R 1025
Boring Bar; 5 mm Shank Dia. × 0.205″ Min Bore Dia. × 0.0394″ Max Bore Depth × 51.58 mm LF ; 0.15 mm Corner Radius ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Connection Diameter Machine Side (DCONMS) | 5 mm | Grade | 1025 |
| Minimum Bore Diameter (DMIN) | 0.205″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Functional Length (LF) | 51.58 mm | Front End Width (a) | 2.4 mm |
| Head Length (LH) | 1 mm | Corner Radius (RE) | 0.15 mm |
| Cutting Direction (HAND) | Right Hand | Cutting Depth Maximum (CDX) | 0.0394″ |
| Coating | TiAlN | Cutting Edge Material | Carbide |
Product Features
| Country of Origin | United Kingdom |
Shipping Info
Package Weight
0.04
