MTR 5 R0.2 L30 BXC

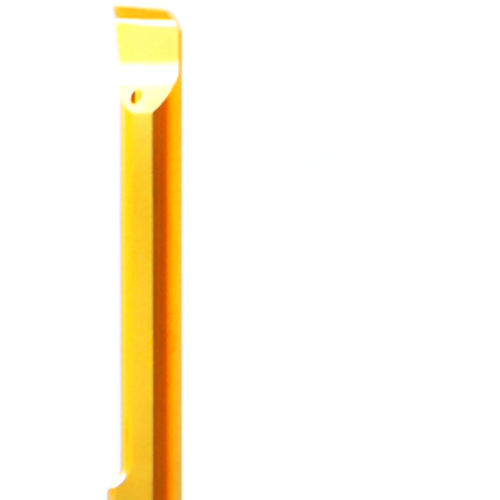

Boring Bar; 5 mm Shank Dia. × 5.08 mm Min Bore Dia. × 29.97 mm LU × 76.2 mm OAL ; 0.2 mm Corner Radius ; Carbide ; TiN
| Connection Diameter Machine Side (DCONMS) | 5 mm | Usable Length (LU) | 29.97 mm |
| Minimum Bore Diameter (DMIN) | 5.08 mm | Cutting Diameter (DC) | 2.03 mm |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coating | TiN | Tool Type | BORING |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Metric |
| Grade | BXC | Size | H5 |
| Applicable Material | | Stainless Steel | | Overall Length (OAL) | 76.2 mm |
| Corner Radius (RE) | 0.2 mm |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.048
