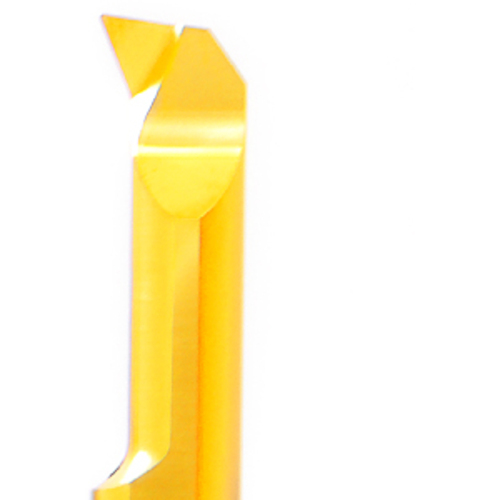

MPR 8 R 0.2 L22
Boring Bar; 8 mm Shank Dia. × 8.13 mm Min Bore Dia. × 1.52 mm Max Bore Depth × 22.1 mm LU × 63.5 mm OAL ; 0.2 mm Corner Radius ; Carbide ; TiN
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Depth Maximum (CDX) | 1.52 mm |
| Minimum Bore Diameter (DMIN) | 8.13 mm | Usable Length (LU) | 22.1 mm |
| Cutting Direction (HAND) | Right Hand | Cutting Diameter (DC) | 3.81 mm |
| Coating | TiN | Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | PROFILING & BORING |
| Grade | BXC | Measurement Type | Metric |
| Applicable Material | | Stainless Steel | | Size | H8 |
| Corner Radius (RE) | 0.2 mm | Overall Length (OAL) | 63.5 mm |
Product Features
| Country of Origin | Israel |
