MPR 2 R0.15 L5

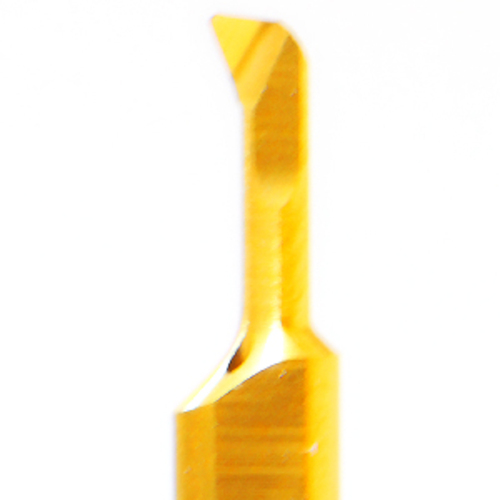

Boring Bar; 3 mm Shank Dia. × 2.03 mm Min Bore Dia. × 0.51 mm Max Bore Depth × 5.08 mm LU × 38.1 mm OAL ; 0.15 mm Corner Radius ; Carbide ; TiN
| Connection Diameter Machine Side (DCONMS) | 3 mm | Cutting Depth Maximum (CDX) | 0.51 mm |
| Minimum Bore Diameter (DMIN) | 2.03 mm | Usable Length (LU) | 5.08 mm |
| Cutting Direction (HAND) | Right Hand | Cutting Diameter (DC) | 0.76 mm |
| Coating | TiN | Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | PROFILING & BORING |
| Grade | BXC | Measurement Type | Metric |
| Applicable Material | | Stainless Steel | | Size | H3 |
| Corner Radius (RE) | 0.15 mm | Overall Length (OAL) | 38.1 mm |
Product Features
| Country of Origin | Israel |
