MPR 10 R0.2 L35 BXC

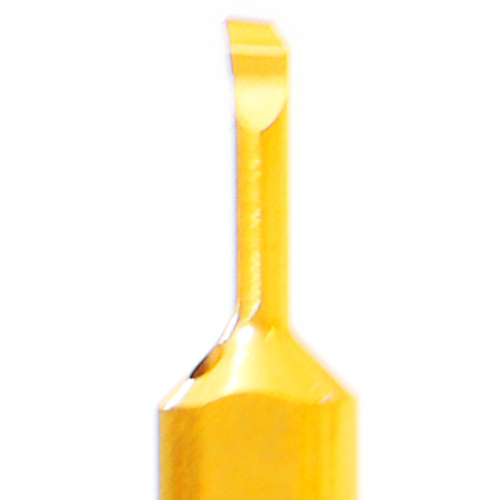

Boring Bar; 10 mm Shank Dia. × 10.16 mm Min Bore Dia. × 2.03 mm Max Bore Depth × 35.05 mm LU × 73.66 mm OAL ; 0.2 mm Corner Radius ; Carbide ; TiN
| Connection Diameter Machine Side (DCONMS) | 10 mm | Cutting Depth Maximum (CDX) | 2.03 mm |
| Minimum Bore Diameter (DMIN) | 10.16 mm | Usable Length (LU) | 35.05 mm |
| Cutting Direction (HAND) | Right Hand | Cutting Diameter (DC) | 4.83 mm |
| Coating | TiN | Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | PROFILING & BORING |
| Grade | BXC | Measurement Type | Metric |
| Applicable Material | | Stainless Steel | | Size | H10 |
| Corner Radius (RE) | 0.2 mm | Overall Length (OAL) | 73.66 mm |
Product Features
| Country of Origin | Israel |
