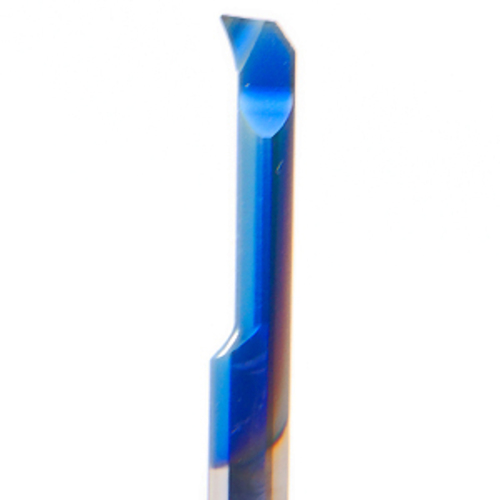

MPR 4 R0.2 L15 BMK
Boring Bar; 4 mm Shank Dia. × 4.06 mm Min Bore Dia. × 0.76 mm Max Bore Depth × 14.99 mm LU × 50.8 mm OAL ; 0.2 mm Corner Radius ; Carbide
| Connection Diameter Machine Side (DCONMS) | 4 mm | Usable Length (LU) | 14.99 mm |
| Minimum Bore Diameter (DMIN) | 4.06 mm | Cutting Diameter (DC) | 1.78 mm |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | PROFILING & BORING |
| Grade | BMK | Measurement Type | Metric |
| Applicable Material | | General Purpose | | Size | H4 |
| Corner Radius (RE) | 0.2 mm | Overall Length (OAL) | 50.8 mm |
| Cutting Depth Maximum (CDX) | 0.76 mm |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.025
