MPL 3 R0.2 L10 BMK

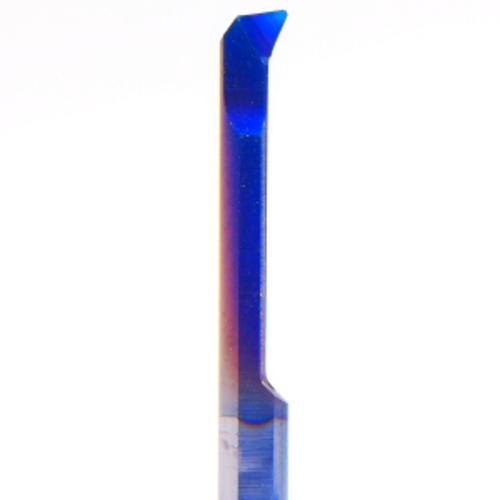

Boring Bar; 3 mm Shank Dia. × 3.05 mm Min Bore Dia. × 0.76 mm Max Bore Depth × 9.91 mm LU × 38.1 mm OAL ; 0.2 mm Corner Radius ; Carbide
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 9.91 mm |
| Minimum Bore Diameter (DMIN) | 3.05 mm | Cutting Diameter (DC) | 1.27 mm |
| Cutting Direction (HAND) | Left Hand | Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | PROFILING & BORING |
| Grade | BMK | Measurement Type | Metric |
| Applicable Material | | General Purpose | | Size | H3 |
| Corner Radius (RE) | 0.2 mm | Overall Length (OAL) | 38.1 mm |
| Cutting Depth Maximum (CDX) | 0.76 mm |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
.0130
