MTR 1 R0.05 L4 BMK

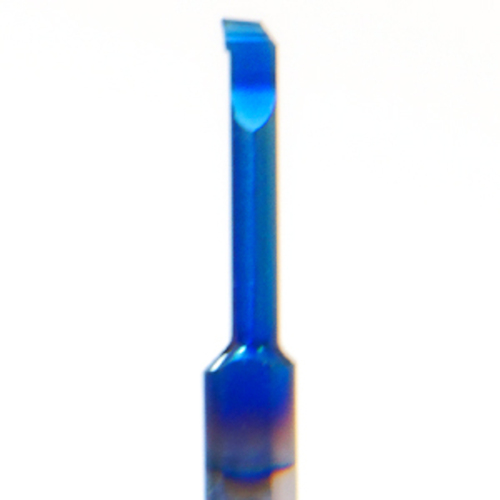

Boring Bar; 3 mm Shank Dia. × 1.02 mm Min Bore Dia. × 4.06 mm LU × 38.1 mm OAL ; 0.05 mm Corner Radius ; Carbide
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 4.06 mm |
| Minimum Bore Diameter (DMIN) | 1.02 mm | Cutting Diameter (DC) | 0.51 mm |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | BORING |
| Grade | BMK | Measurement Type | Metric |
| Applicable Material | | General Purpose | | Size | H3 |
| Corner Radius (RE) | 0.05 mm | Overall Length (OAL) | 38.1 mm |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
.0130
