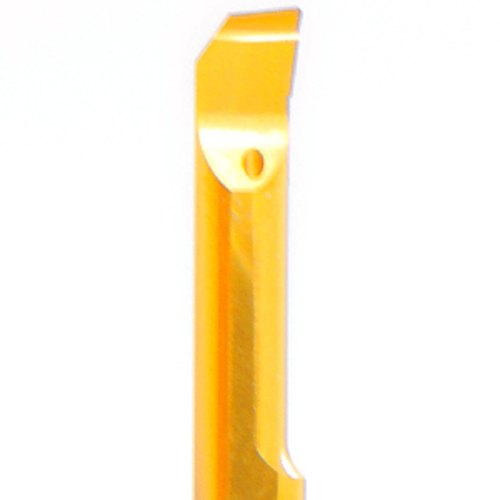

MTL 4 R0.2 L15 BXC TINY TOOLS
Boring Bar; 4 mm Shank Dia. × 4.06 mm Min Bore Dia. × 14.99 mm LU × 50.8 mm OAL ; 0.2 mm Corner Radius ; Carbide ; TiN
| Connection Diameter Machine Side (DCONMS) | 4 mm | Usable Length (LU) | 14.99 mm |
| Minimum Bore Diameter (DMIN) | 4.06 mm | Cutting Diameter (DC) | 1.78 mm |
| Cutting Direction (HAND) | Left Hand | Cutting Edge Material | Carbide |
| Coating | TiN | Tool Type | BORING |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Metric |
| Grade | BXC | Size | H4 |
| Applicable Material | | Stainless Steel | | Overall Length (OAL) | 50.8 mm |
| Corner Radius (RE) | 0.2 mm |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
.9999
