SI-CDHOR-32H

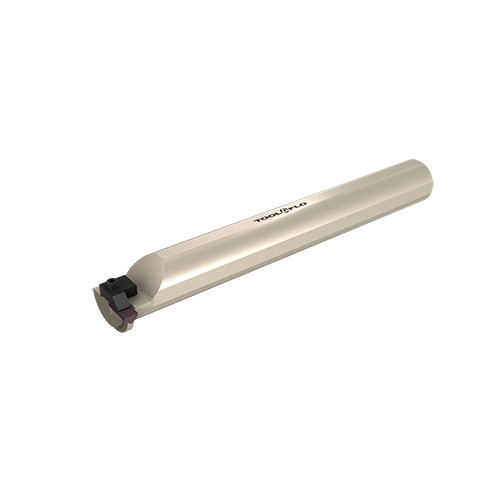

Grooving Toolholder ; 16″ OAL ; 1.26″ Shank Height ; 2″ Shank Dia. ; 0.118″ CW Min. ; 0.126″ CW Max. ; 0.312″ Max Depth ; Steel
| Connection Diameter Machine Side (DCONMS) | 2″ | Cutting Depth Maximum (CDX) | 0.312″ |
| Overall Length (OAL) | 16″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 3″ | Measurement Type | Inch |
| Application | | Int Threading/Grooving Vee Bot | | Functional Width (WF) | 1.584″ |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Internal Right Hand Threading and Grooving Bars for FloVee Style Inserts with Integrated Insert Support & Clamp | Country of Origin | USA |
