KGDR 2525M2T10 EXTL GRVE
Grooving Toolholder ; 150 mm OAL ; 25 mm Shank Height ; 25 mm Shank Width ; 2 mm CW Min. ; 3 mm CW Max. ; 10 mm Max Depth ; Right Hand ; Steel ; Series KGD

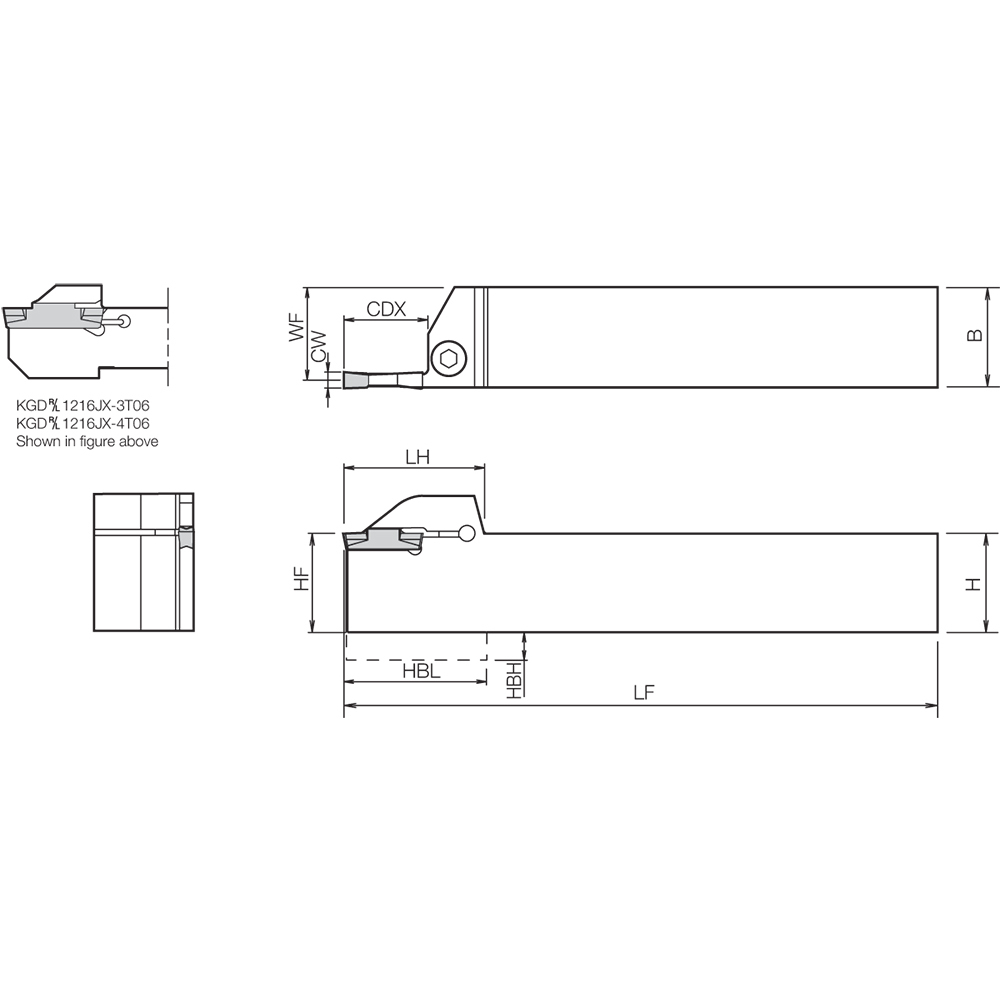

| Cutting Width Minimum (CWN) | 2 mm | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 3 mm | Application | Grooving | Cut-Off |
| Cutting Depth Maximum (CDX) | 10 mm | Body Material | Steel |
| Shank Height (H) | 25 mm | Series/List # | KGD |
| Shank Width (B) | 25 mm | Measurement Type | Metric |
| Head Length (LH) | 30.5 mm | Cutting Position | External |
| Overall Length (OAL) | 150 mm | Shank Length (LS) | 119.5 mm |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Alternate Manufacture # KGDR2525M2T10 | Country of Origin | Japan |
Shipping Info
Package Weight
1.191
