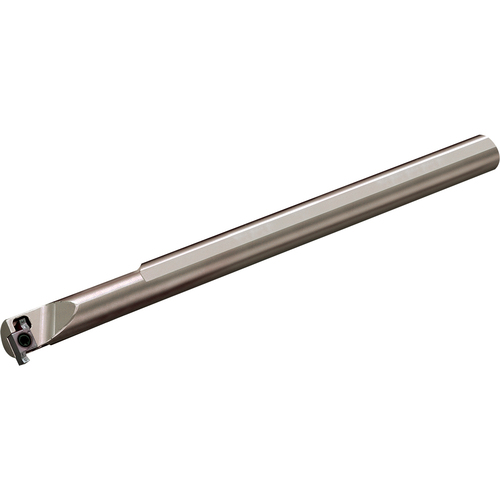

SIGER 1412CWH INT GROOVE

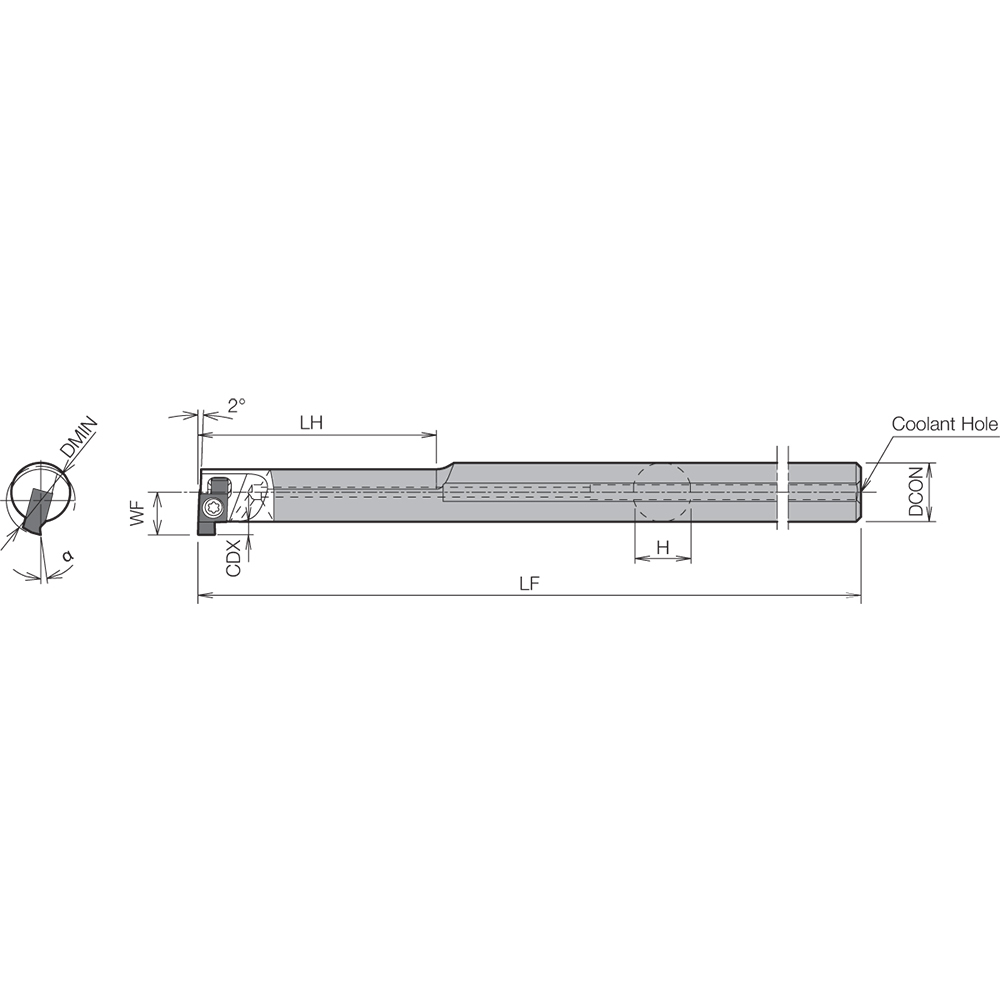

| Cutting Width Minimum (CWN) | 1 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 3.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 2.5 mm | Application | Grooving |
| Shank Height (H) | 11.4 mm | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 14 mm | Series/List # | SIGE |
| Head Length (LH) | 50 mm | Measurement Type | Metric |
| Overall Length (OAL) | 150 mm | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
Product Features
| Family Description | Alternate Manufacture # SIGER1412CWH | Country of Origin | Japan |
Shipping Info
Package Weight
.5340
