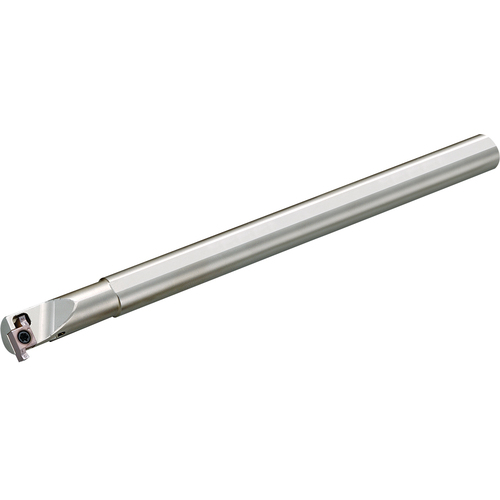

SIGER 2025EEH INT GROOVE

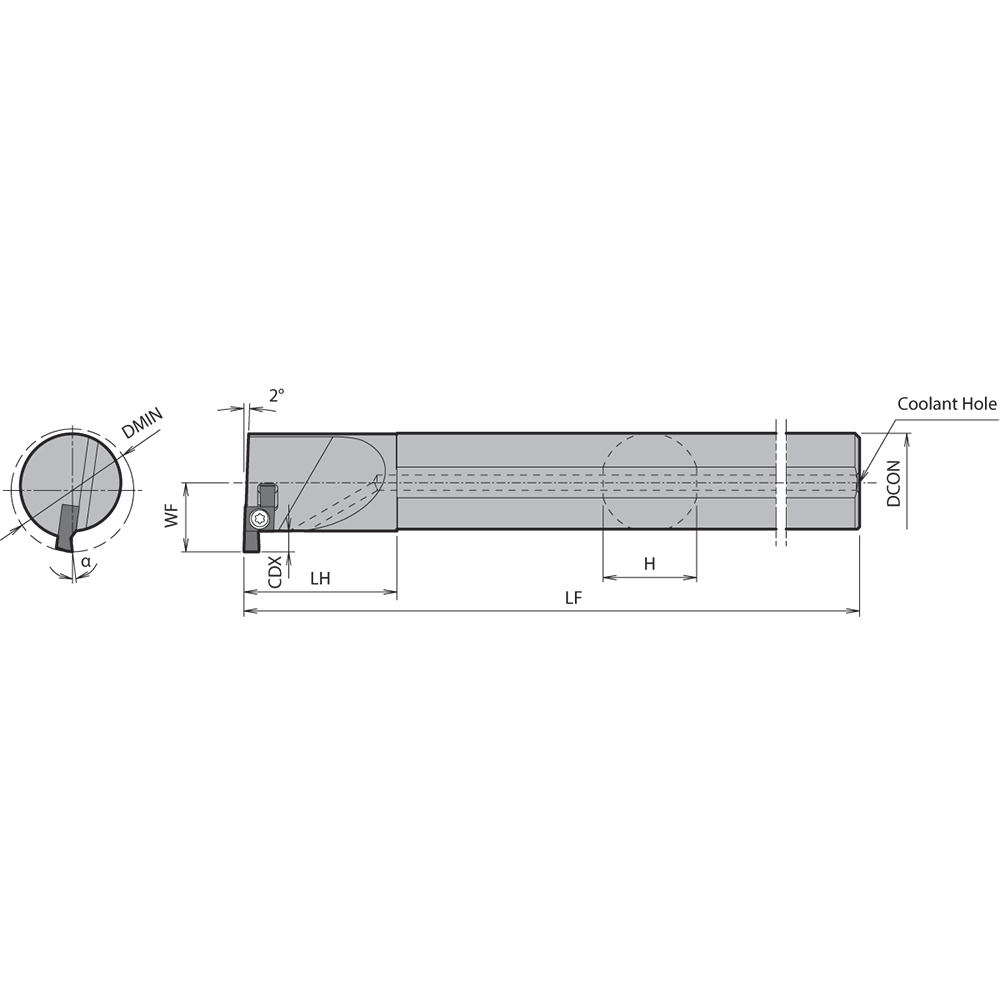

| Cutting Width Minimum (CWN) | 0.0394″ | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 0.1969″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.2559″ | Application | Grooving |
| Shank Height (H) | 1.17″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.5748″ | Series/List # | SIGE |
| Head Length (LH) | 1.772″ | Measurement Type | Inch |
| Overall Length (OAL) | 9.84″ | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
Product Features
| Family Description | Alternate Manufacture # SIGER2025EEH | Country of Origin | Japan |
Shipping Info
Package Weight
0.959
