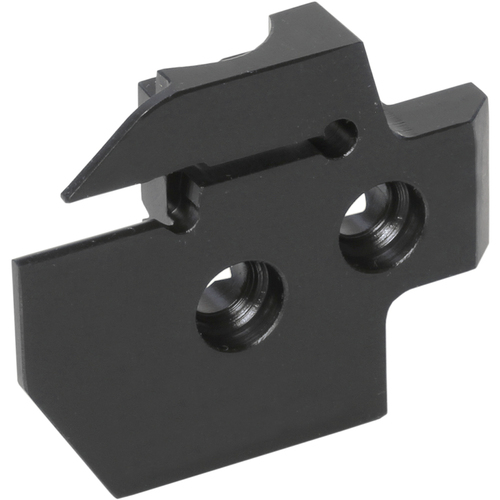

KGDR 3T10C EXTERNAL
Grooving Toolholder ; 44.2 mm OAL ; 41.5 mm Shank Height ; 2.4 mm Shank Width ; 3 mm CW Min. ; 4 mm CW Max. ; 10.2 mm Max Depth ; Right Hand ; Steel ; Series KGD
| Cutting Width Minimum (CWN) | 3 mm | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 4 mm | Application | Grooving | Cut-Off |
| Cutting Depth Maximum (CDX) | 10.2 mm | Body Material | Steel |
| Shank Height (H) | 41.5 mm | Series/List # | KGD |
| Shank Width (B) | 2.4 mm | Measurement Type | Metric |
| Overall Length (OAL) | 44.2 mm | Cutting Position | External |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Alternate Manufacture # KGDR3T10C | Country of Origin | Japan |
Shipping Info
Package Weight
0.187
