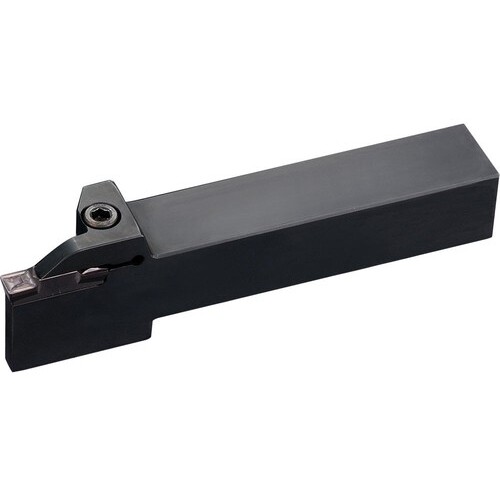

KGDR 164T25 EXTL GROOVE
Grooving Toolholder ; 5.9″ OAL ; 1″ Shank Height ; 1″ Shank Width ; 0.1575″ CW Min. ; 0.1969″ CW Max. ; 0.9843″ Max Depth ; Right Hand ; Steel ; Series KGD
| Cutting Width Minimum (CWN) | 0.1575″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.1969″ | Application | Grooving | Cut-Off |
| Cutting Depth Maximum (CDX) | 0.9843″ | Body Material | Steel |
| Shank Height (H) | 1″ | Series/List # | KGD |
| Shank Width (B) | 1″ | Measurement Type | Inch |
| Head Length (LH) | 1.59″ | Cutting Position | External |
| Overall Length (OAL) | 5.9″ | Shank Length (LS) | 4.31″ |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Alternate Manufacture # KGDR164T25 | Country of Origin | China |
Shipping Info
Package Weight
0.5
