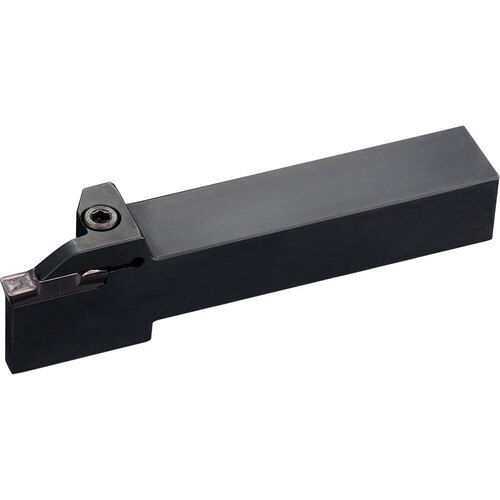

KGDR 163T20 EXTL GROOVE
Grooving Toolholder ; 5.9″ OAL ; 1″ Shank Height ; 1″ Shank Width ; 0.1181″ CW Min. ; 0.1575″ CW Max. ; 0.7874″ Max Depth ; Right Hand ; Steel ; Series KGD

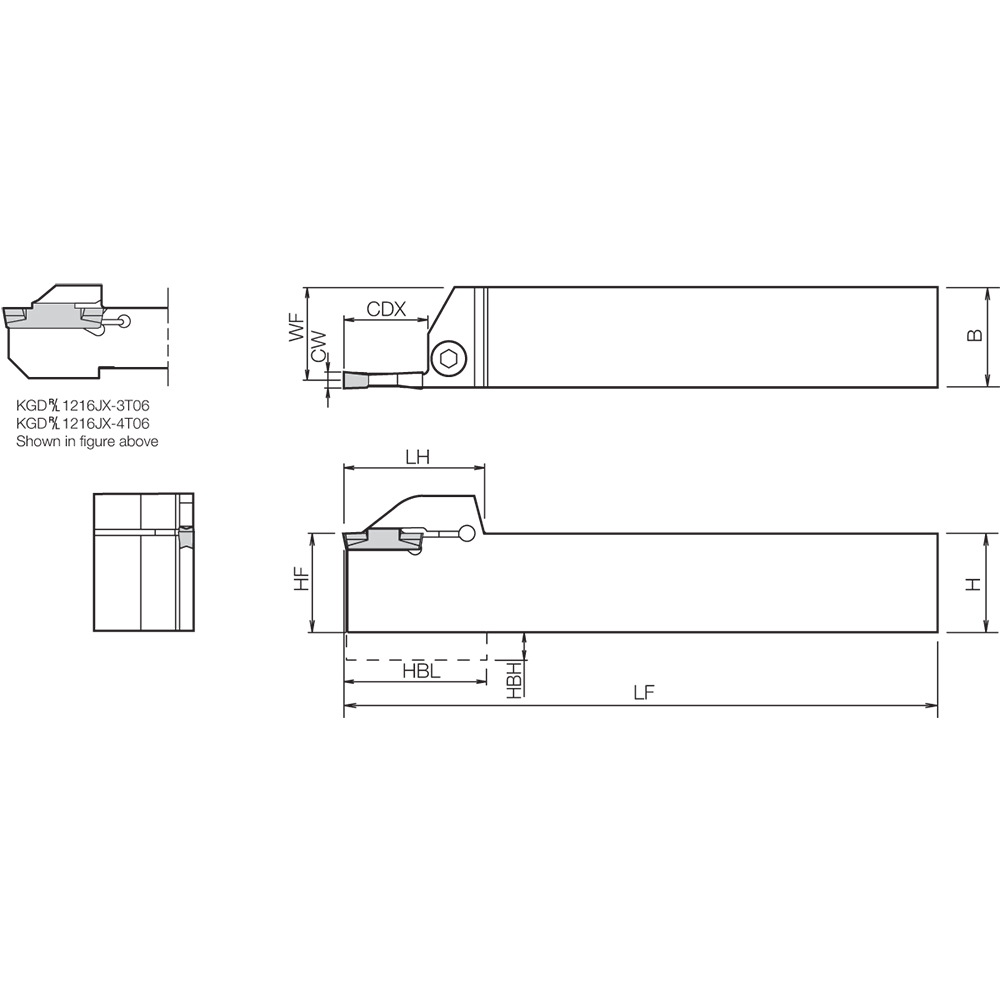

| Cutting Width Minimum (CWN) | 0.1181″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.1575″ | Application | Grooving | Cut-Off |
| Cutting Depth Maximum (CDX) | 0.7874″ | Body Material | Steel |
| Shank Height (H) | 1″ | Series/List # | KGD |
| Shank Width (B) | 1″ | Measurement Type | Inch |
| Head Length (LH) | 1.39″ | Cutting Position | External |
| Overall Length (OAL) | 5.9″ | Shank Length (LS) | 4.51″ |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Alternate Manufacture # KGDR163T20 | Country of Origin | Japan |
Shipping Info
Package Weight
0.5
