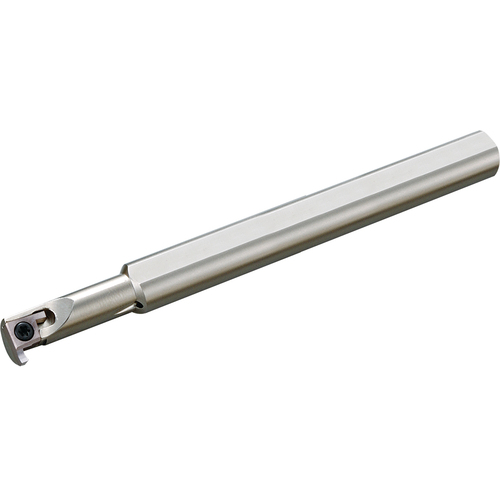

SIGER 05EH INT GROOV HLDR
Grooving Toolholder ; 3.94″ OAL ; 0.283″ Shank Height ; 0.315″ Shank Dia. ; 0.0394″ CW Min. ; 0.0787″ CW Max. ; 0.0591″ Max Depth ; Right Hand ; Steel ; Series SIGE

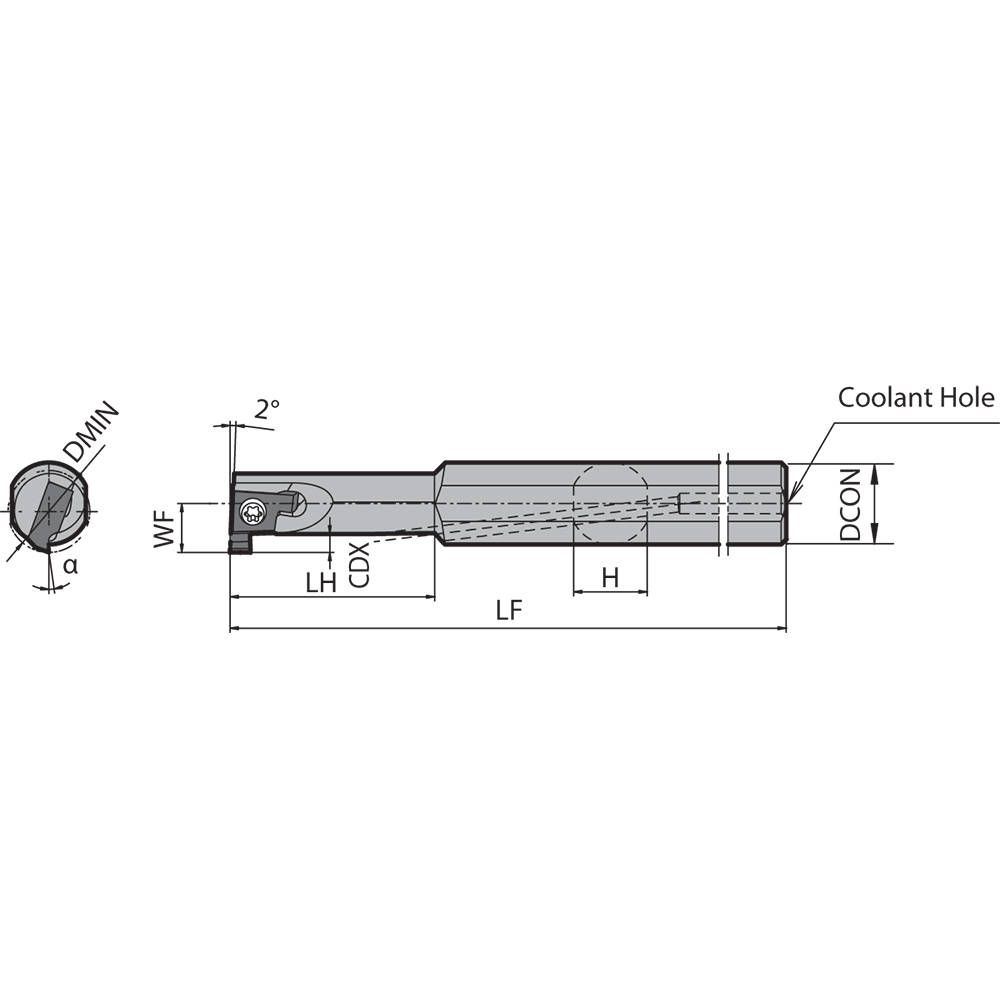

| Cutting Width Minimum (CWN) | 0.0394″ | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 0.0787″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.0591″ | Application | Grooving |
| Shank Height (H) | 0.283″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.313″ | Series/List # | SIGE |
| Head Length (LH) | 0.787″ | Measurement Type | Inch |
| Overall Length (OAL) | 3.94″ | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 0.315″ |
Product Features
| Family Description | Alternate Manufacture # SIGER05EH | Country of Origin | Japan |
Shipping Info
Package Weight
.5340
