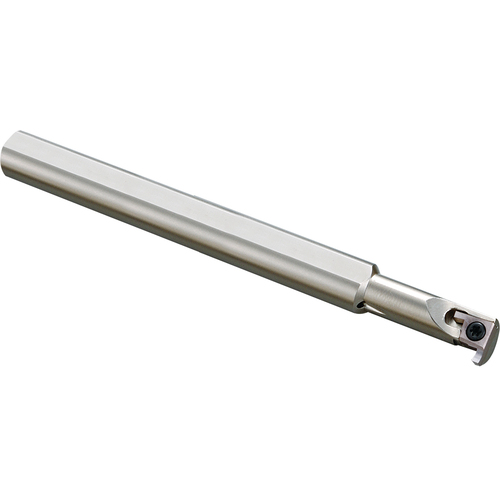

SIGEL 06EH INT GROOV HLDR
Grooving Toolholder ; 4.92″ OAL ; 0.3543″ Shank Height ; 0.3937″ Shank Dia. ; 0.0394″ CW Min. ; 0.1181″ CW Max. ; 0.0866″ Max Depth ; Left Hand ; Steel ; Series SIGE
| Cutting Width Minimum (CWN) | 0.0394″ | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 0.1181″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.0866″ | Application | Grooving |
| Shank Height (H) | 0.3543″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.3937″ | Series/List # | SIGE |
| Head Length (LH) | 0.9843″ | Measurement Type | Inch |
| Overall Length (OAL) | 4.92″ | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 0.3937″ |
Product Features
| Family Description | Alternate Manufacture # SIGEL06EH | Country of Origin | Japan |
Shipping Info
Package Weight
.5340
