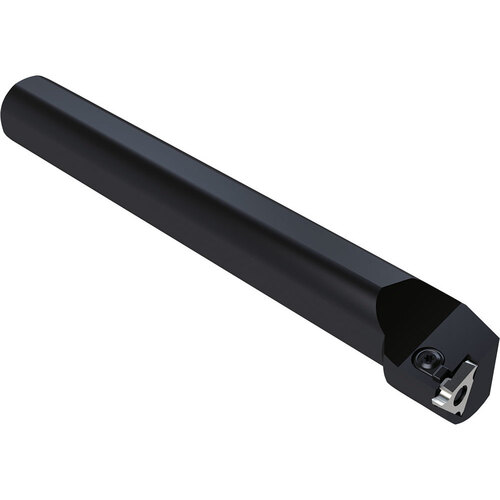

KIGBAL 352516 INT GROOVE
Grooving Toolholder ; 220 mm OAL ; 23 mm Shank Height ; 25 mm Shank Dia. ; 0.33 mm CW Min. ; 3 mm CW Max. ; 2.5 mm Max Depth ; Left Hand ; Steel ; Series KIGBA
| Cutting Width Minimum (CWN) | 0.33 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 3 mm | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 2.5 mm | Application | Large Diameter Shallow Grooving |
| Shank Height (H) | 23 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 35 mm | Series/List # | KIGBA |
| Head Length (LH) | 30 mm | Measurement Type | Metric |
| Overall Length (OAL) | 220 mm | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
Product Features
| Family Description | Alternate Manufacture # KIGBAL352516 | Country of Origin | China |
Shipping Info
Package Weight
1.9974
